Features

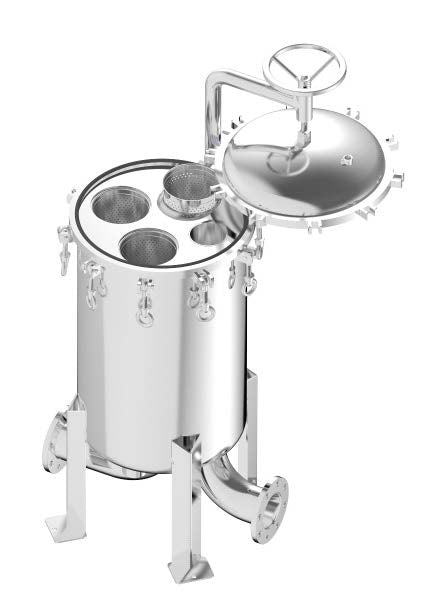

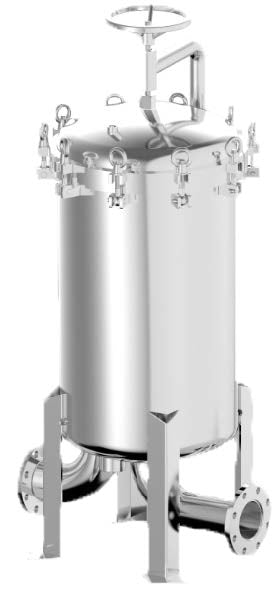

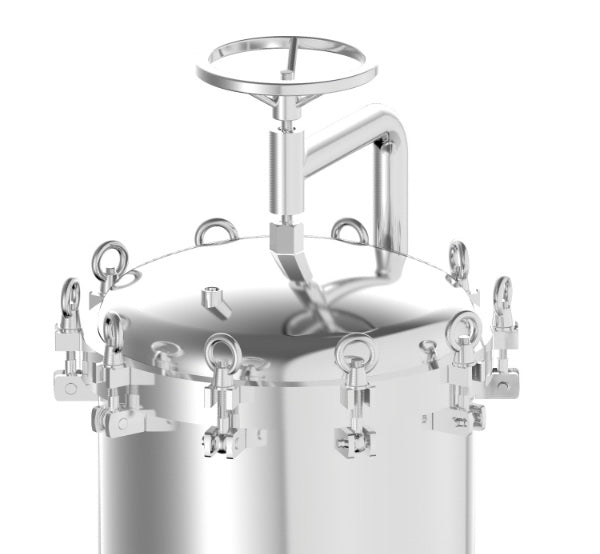

• Available in a standard 540 (3 bags) , 720 (4bags) and 1080 (6 bags) GPM
• Available in 304 and 316 Stainless Steel All models come standard with:
• 4"" (540 & 720 GPM) 6"" (1080 GPM) In & outlet
• ANSI
• Bottom in and bottom out
• EPDM O-rings
• Acid wash interior finish
• Electrolyzed exterior finish
• Other configurations available upon request

Note

• Compatible with all filter bags (all micron sizes and materials)
• Max operating temperature is 75°C
• Size of pressure gauge holes on cover is ¼""

Applications

• Petrochemical
• Construction
• Cosmetic
• Chemical
• Medical
• Textil
• Food
• Waste water, etc.

Part NumberSize Bag SizeIn / OutMax PressureFlowMaterial
 ERS-540-BB-SS304-4F 20"" Ø- 60"" 7"" x 32"" (Bag #2)(3) 4"" Flange 100 PSI 540 GPM 304 Stainless
 ERS-540-BB-SS316-4F 20"" Ø- 60"" 7"" x 32"" (Bag #2)(3) 4"" Flange 100 PSI 540 GPM 316 Stainless
 ERS-720-BB-SS304-6F 22"" Ø- 61"" 7"" x 32"" (Bag #2)(4) 4"" Flange 100 PSI 720 GPM 304 Stainless
 ERS-720-BB-SS316-6F 22"" Ø- 61"" 7"" x 32"" (Bag #2)(4) 4"" Flange 100 PSI 720 GPM 316 Stainless
 ERS-1080-BB-SS304-6F 24"" Ø- 66"" 7"" x 32"" (Bag #2)(6) 6"" Flange 100 PSI 1080 GPM 304 Stainless
 ERS-1080-BB-SS316-6F 24"" Ø- 66"" 7"" x 32"" (Bag #2)(6) 6"" Flange 100 PSI 1080 GPM 316 Stainless
ModelInlet /Outlet No.
of bags
 A
m/m
B
m/m
C
m/m
D
m/m
E
m/m
F (PCD)
m/m
 G
m/m
GPM Weight
 ERS-540 4F 3 Ø508 1527 127 127 724 Ø618 Ø14 540 130kg
 ERS-720 4F 4 Ø560 1549 127 127 737 Ø704 Ø18 720 169kg
 ERS-1080 6F 6 Ø600 1673 152 152 876 Ø744 Ø18 1080 206kg
Model Item Quantity Unit Price Line Total
304 Stainless 540 GPM - SampsonTM Multi-Bag Filter Housing
$ 0.00
316 Stainless 540 GPM - SampsonTM Multi-Bag Filter Housing
$ 0.00
304 Stainless 720 GPM - SampsonTM Multi-Bag Filter Housing
$ 0.00
316 Stainless 720 GPM - SampsonTM Multi-Bag Filter Housing
$ 0.00
1080 Stainless 540 GPM - SampsonTM Multi-Bag Filter Housing
$ 0.00
1080 Stainless 720 GPM - SampsonTM Multi-Bag Filter Housing
$ 0.00
$ 0.00
