A bag filter housing is only as effective as its match to the application. Oversize it and you waste capital. Undersize it and you burn through bags, spike differential pressure, and risk unplanned downtime. This guide walks through the sizing, configuration, and material decisions that determine whether a bag filter housing performs reliably in industrial liquid service — or becomes a maintenance headache. For the companion guide on selecting the bags themselves, see Industrial Filter Bags: Complete Selection Guide.
What Is a Bag Filter Housing?

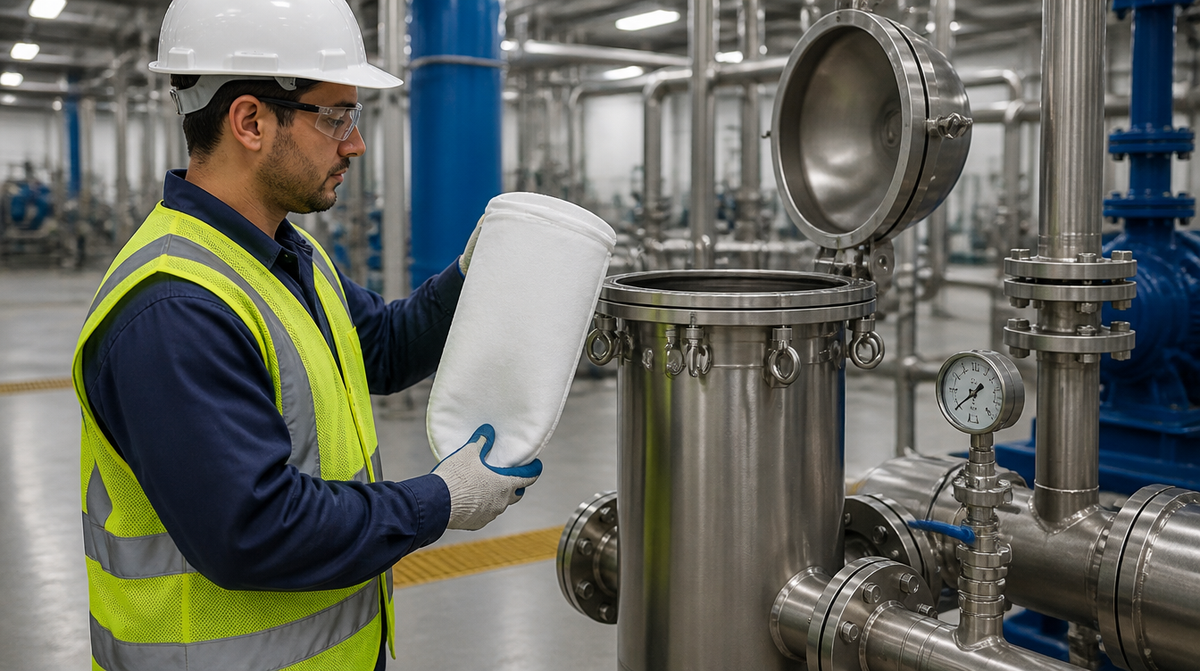

A bag filter housing is a pressure vessel designed to hold one or more filter bags in a liquid process stream. Unfiltered liquid enters the housing inlet, flows through the filter bag from inside to outside, and exits clean through the outlet. Captured particulate accumulates inside the bag until differential pressure across the bag signals a change-out.
Bag filter housings are the workhorse of industrial liquid filtration across Canada — used in water treatment, chemical processing, food and beverage production, paint and coatings, pulp and paper, mining, and oil and gas operations. They handle flow rates from 5 GPM on a small single-bag unit up to 1,500+ GPM on large multi-bag configurations.
Housing Configurations: Single-Bag, Multi-Bag, and Duplex
The three main configurations each solve a different operating problem. Choosing wrong at the design stage is expensive to fix later. For a detailed comparison of when to use each type, see Multi-Bag vs. Single-Bag vs. Duplex Filter Housings.
Single-Bag Filter Housings
A single bag filter housing holds one filter bag and is the simplest, lowest-cost configuration. It suits applications with moderate flow rates (typically 5–100 GPM depending on bag size), intermittent operation, or systems where brief shutdowns for bag changes are acceptable.
ERE stocks the Sampson™ Bag Filter Housing line in 304 and 316L stainless steel — the standard choice for most Canadian industrial applications. For corrosive or high-purity environments where metal contact is unacceptable, the Sampson™ Single and Double Barrel Filter Housings by HX Plastics provide a non-metallic alternative.
Multi-Bag Filter Housings
A multi bag filter housing holds 2 to 24 bags in parallel inside a single vessel. Flow is distributed across all bags simultaneously, which means each individual bag sees a fraction of the total flow. This extends bag life, reduces pressure drop, and handles high flow rates (200–1,500+ GPM) without requiring an enormous single bag.
Multi-bag housings are the standard for high-volume continuous processes — municipal water treatment, large-batch chemical production, high-throughput food and beverage lines. ERE carries the Sampson™ Multi-Bag Filter Housing by EMC and the BFS Series Multi-Bag Housings by Shelco, covering configurations from 2-bag to 12-bag and beyond.
Duplex (Side-by-Side) Bag Filter Housings
A duplex bag filter housing consists of two housings piped in parallel with a transfer valve that allows one side to be isolated for bag change-out while the other remains in service. The result is zero downtime during maintenance — the process stream never stops flowing.
Duplex configurations are non-negotiable in applications where uninterrupted flow is critical: continuous chemical reactions, food production lines under sanitary regulations, pharmaceutical water systems, and any process where stopping flow means scrapping a batch or triggering a safety shutdown.
Stainless Steel Selection: 304 vs. 316L
Nearly all industrial bag filter housings sold in Canada are fabricated from stainless steel. The two grades that cover 95% of applications are 304 and 316L.
| Property | 304 Stainless | 316L Stainless |
|---|---|---|
| Corrosion resistance | Good — handles most industrial water, mild acids, alkaline solutions | Superior — resists chlorides, brackish water, marine environments, stronger acids |
| Typical applications | Process water, coolants, general industrial, wastewater | Food and beverage, pharmaceutical, chemical processing, coastal/marine, brine |
| Cost | Lower | ~20–30% premium over 304 |
| Welding | Standard | "L" grade (low carbon) resists intergranular corrosion in weld zones |
Decision rule: If your process fluid contains chlorides above 200 ppm, if the housing will be CIP (clean-in-place) washed with caustic or acidic sanitizers, or if the application requires 3-A or FDA material compliance — specify 316L. For everything else, 304 delivers equivalent performance at lower cost.
ERE's Sampson™ stainless steel housings are available in both grades. The Sampson™ High Pressure Bag Filter Housings by EMC are designed for applications requiring elevated working pressures in 316L construction.
Sizing a Bag Filter Housing: The Four Inputs
Correct sizing requires four data points. Miss any one and the system either underperforms or wastes money.
1. Flow Rate (GPM or m³/h)
Your design flow rate determines how many bags you need in parallel. Each bag size has a practical maximum flow rate beyond which differential pressure rises too fast and bag life shortens. Typical maximums per bag:
| Bag Size | Dimensions | Surface Area | Practical Max Flow (Water) |
|---|---|---|---|
| #1 | 7" × 17" | ~1.5 ft² | ~100 GPM |
| #2 | 7" × 32" | ~3.0 ft² | ~200 GPM |
| #3 | 4" × 8" | ~0.5 ft² | ~15 GPM |
| #4 | 4" × 15" | ~0.9 ft² | ~50 GPM |
For full details on bag sizing, dimensions, and ring compatibility, see Filter Bag Sizes: Dimensions, Rings & Compatibility.
If your required flow exceeds a single bag's capacity, move to a multi-bag housing. A 4-bag #2 housing, for example, handles up to ~800 GPM while keeping each bag within its comfortable operating range.
2. Dirt Load and Change-Out Frequency
High-solids applications exhaust filter bags faster. If you are changing bags more often than acceptable (daily change-outs on a 24/7 process, for example), you either need a larger bag size for more dirt-holding capacity or more bags in parallel to share the load. Moving from a single #1 bag to a 2-bag #2 housing roughly quadruples your dirt-holding capacity.
3. Operating Pressure and Temperature
Every housing has a maximum allowable working pressure (MAWP) and temperature rating. Standard housings typically rate 150 PSI at ambient temperature. High-pressure applications — reverse osmosis prefiltration, high-head pump discharge, steam condensate — require housings rated to 300 PSI or higher. The Sampson™ High Pressure Bag Filter Housings by EMC and the BF Series by A.P. Buck cover these demanding specifications.
4. Inlet and Outlet Connection Size
Housing connections must match (or adapt to) your existing piping. Standard connections range from 1" to 8" in threaded (NPT), flanged (150# or 300#), or tri-clamp (sanitary) configurations. Undersized connections restrict flow and create unnecessary pressure drop. Oversized connections waste money without improving performance.
Filter Bag Material and Micron Selection
The housing is the vessel — the filter bag inside it does the actual filtration. Bag material (polypropylene, polyester, or nylon monofilament) and micron rating must match the fluid chemistry, temperature, and target particle size. For a full comparison, see Polypropylene vs. Nylon vs. Polyester Filter Bags and Filter Bag Micron Ratings: How to Choose.
The most common mistake in bag filtration system design is selecting the housing and bag independently. They are a system. A housing sized for 200 GPM paired with a 1-micron bag will blind almost immediately at that flow rate. Size the system — housing, bag, micron rating, and flow — together.
Installation and Maintenance Considerations
A few practical points that are easy to overlook during specification but matter in daily operation:
- Headroom: Single-bag housings with swing-bolt closures need enough overhead clearance to open the lid and extract the bag. Multi-bag housings need even more. Measure your available ceiling height before specifying.
- Drain and vent: Every housing should have a bottom drain for tank emptying and a top vent for air release during startup. Missing either one complicates maintenance and can cause air-lock problems.
- O-ring seals: Housing lid seals are typically Buna-N (general purpose), EPDM (hot water, steam, food-grade), or Viton (solvents, aggressive chemicals). Match the seal material to your fluid — a failed O-ring bypasses the entire filter.
- Differential pressure gauge: Install a DP gauge across the housing to monitor bag loading in real time. Change bags based on measured pressure drop (typically at 15–20 PSI DP), not on a calendar schedule. This maximizes bag life and prevents bag blowout from overpressure.
- Support basket: The internal basket holds the bag open and prevents collapse under flow. It must match the bag size exactly. A damaged or missing basket leads to bag collapse, bypass, and downstream contamination.
ERE's Bag Filter Housing Product Lines
ERE Inc. carries a full range of bag filter housings to cover the spectrum from small single-bag applications to large multi-bag process systems:
- Sampson™ Bag Filter Housings — standard single-bag housings in 304 and 316L stainless steel, covering #1 through #4 bag sizes with threaded and flanged connections.
- Sampson™ Single & Double Barrel Filter Housings (by HX Plastics) — non-metallic housings for corrosive applications or processes requiring zero metal contact.
- Sampson™ High Pressure Bag Filter Housings (by EMC) — 316L housings rated for elevated working pressures in demanding industrial service.
- Sampson™ Multi-Bag Filter Housing (by EMC) — multi-bag configurations for high-flow applications requiring extended bag life.
- BF Series (by A.P. Buck) — heavy-duty single and multi-bag housings for high-pressure and high-temperature applications.
- BFS Series Multi-Bag Housings (by Shelco) — large-format multi-bag vessels for municipal and heavy-industrial flow rates.
Frequently Asked Questions
What size bag filter housing do I need for my flow rate?
Match your flow rate to the bag size capacity. A single #2 bag housing handles up to approximately 200 GPM on water. For higher flow rates, use a multi-bag housing — a 4-bag #2 housing covers up to roughly 800 GPM. If your flow is under 50 GPM, a single #1 or #4 housing is typically sufficient. Always factor in your fluid viscosity and dirt load, as both reduce effective capacity below the water-based maximums.
When should I choose 316L stainless steel over 304 for a bag filter housing?
Specify 316L when your process fluid contains chlorides above 200 ppm, when the housing will be exposed to caustic or acid CIP wash cycles, when the application requires 3-A or FDA material compliance (food, beverage, pharmaceutical), or when the housing operates in a marine or coastal environment. For general industrial water, coolant, and wastewater applications, 304 stainless delivers equivalent performance at lower cost.
What is the advantage of a duplex bag filter housing over a single housing?
A duplex configuration provides uninterrupted filtration during bag change-outs. One housing stays in service while the other is isolated, drained, and re-bagged. This eliminates process downtime entirely — critical for continuous chemical reactions, food production lines, and any application where stopping flow means scrapping a batch or triggering a safety shutdown. The trade-off is higher upfront cost and a larger physical footprint.
How often should I change the filter bags in my housing?
Change bags based on differential pressure, not calendar time. Install a DP gauge across the housing and replace bags when the reading reaches 15–20 PSI (or the manufacturer's recommended maximum). Calendar-based changes either waste bags (changed too early) or risk blowout and bypass (changed too late). In clean-water applications, bags may last weeks. In high-solids applications, daily changes are normal. The right change interval is the one that keeps DP within limits.
