Fluorescent Tracer Dyes: Leak Detection and Water Tracing Guide for Canada

Tracer dyes make invisible water flow visible. Drop the right dye into a storm drain, a septic field, or a process line and you can see where the water goes, find the leak, or prove an illegal cross-connection — often with nothing more than your eyes or a UV lamp. The catch is that "the right dye" depends on the job: color, format, fluorescence, and dose all change with the application. This guide covers how to choose a fluorescent tracer dye, how to run a dye trace, and the safety and detection facts that matter for Canadian field work.

What Is a Fluorescent Tracer Dye?

A fluorescent tracer dye is a concentrated, water-soluble colorant added to water in tiny quantities to make its movement visible and traceable. Because the dye travels with the water, watching where the color appears reveals the flow path, the leak point, or the connection between two systems that should be separate. Fluorescent grades go a step further: under ultraviolet light they glow, so they can be detected at concentrations far too dilute to see in ordinary daylight.

The economics are what make dye tracing practical. A single pint of liquid industrial red dye visibly traces up to roughly 12,500 gallons of water, and one pound of powder can trace up to about 120,000 gallons. That sensitivity lets a field technician confirm a flow path or a leak with a few dollars of dye instead of excavation or camera crews. ERE supplies the Bright Dyes line from Kingscote Chemicals, the professional standard for water tracing across municipal, environmental, and industrial work.

What Are Tracer Dyes Used For?

Tracer dyes are used anywhere you need to follow water you can't otherwise see. The same product family covers municipal infrastructure testing, environmental investigations, and industrial process work — the application just changes the color, format, and dose.

• Leak detection: Trace leaks in sewage systems, pressure pipes, pools, and plumbing by dosing the suspect line and watching where the dye surfaces.
• Sewer and storm tracing: Map storm and sanitary lines, and detect illegal sewer connections or storm/sanitary cross-connections — a common municipal compliance task.
• Septic and inspection work: Confirm septic field discharge points and failures during property inspections.
• Flow and dispersion studies: Measure flow rate, dilution, and dispersion in channels, outfalls, and receiving waters, often by fluorometric (instrument) analysis.
• Cross-connection control: Prove or rule out a connection between potable and non-potable systems.
• Industrial systems: Pipeline hydrostatic testing, cooling-tower and closed-loop tracing, and power-plant piping checks.

Which Tracer Dye Color Should You Use?

Choose the color that contrasts most with the water you're tracing, because contrast — not the dye's nominal brightness — determines whether you can see it. The wrong color can disappear into the background and waste the trace.

• Fluorescent yellow-green is the most visible color in clear water and the workhorse for general flow tracing and dispersion studies. This is the classic "fluorescein" green that most people picture when they think of dye tracing.
• Red (industrial and FWT grades) offers the greatest contrast against heavy green algae and turbid water, and is recommended when dye input has to be metered for a quantitative study.
• Fluorescent orange is commonly used to detect illegal sewer connections and trace sewer lines.
• Blue is used where a discreet or decorative tint is preferred — household-system evaluation, pipeline hydro testing, and situations where a vivid color would alarm the public.

Red, orange, and yellow-green are fluorescent, so they can be read both visually and with a UV lamp or fluorometer; their fluorescence gives them greater apparent contrast than non-fluorescent blue. In dual-tracing studies, two fluorescent colors are sometimes released together and separated by fluorometric analysis. For a deeper look at the most-used color, see Fluorescein Dye: Colors, Detection, and Uses in Water Tracing.

Tablet, Liquid, or Powder — Which Format Is Best?

Match the format to the scale and control your trace needs. All three deliver the same dyes; they differ in handling, dosing precision, and how much water they can trace.

When Should You Use Dye Tablets?

Use tablets for fast, clean field spot checks where you don't need precise metering. Tablets are easy to handle, dissolve in roughly 5–8 minutes, and avoid the spill risk of pouring liquid concentrate. One tablet visibly traces 20–60 gallons depending on color, which suits plumbing checks, storm-line tracing, and quick connection tests.

When Should You Use Liquid Dye?

Use liquid when input has to be metered or the study is quantitative. Liquid concentrate is recommended for flow, dilution, and dispersion studies and for fluorometric dye tests where the exact mass of dye released matters. A pint of liquid traces up to roughly 12,500 gallons (industrial red), so it covers large volumes economically.

When Should You Use Powder?

Use powder for very large applications where shipping and storing liquid is impractical. Powder is the most concentrated format — one pound traces up to about 120,000 gallons — and is used for lakes, rivers, ponds, large closed-loop systems, and cooling towers.

How Do You Run a Dye Trace?

A dye trace follows a simple sequence: pick the dye, calculate the dose, introduce it at the source, and watch or measure where it emerges. The discipline is in dose and detection, not the mechanics.

1. Define the question and the detection method. Decide whether you'll detect visually, with a UV lamp, or with a fluorometer — this sets how much dye you need and which color works.
2. Choose color and format by water background and scale, using the guidance above.
3. Calculate the dose from the water volume and the dye's trace rating (for example, 1 pint of industrial red per ~12,500 gallons for strong visual detection). Under-dosing loses the trace; over-dosing wastes dye and can alarm the public.

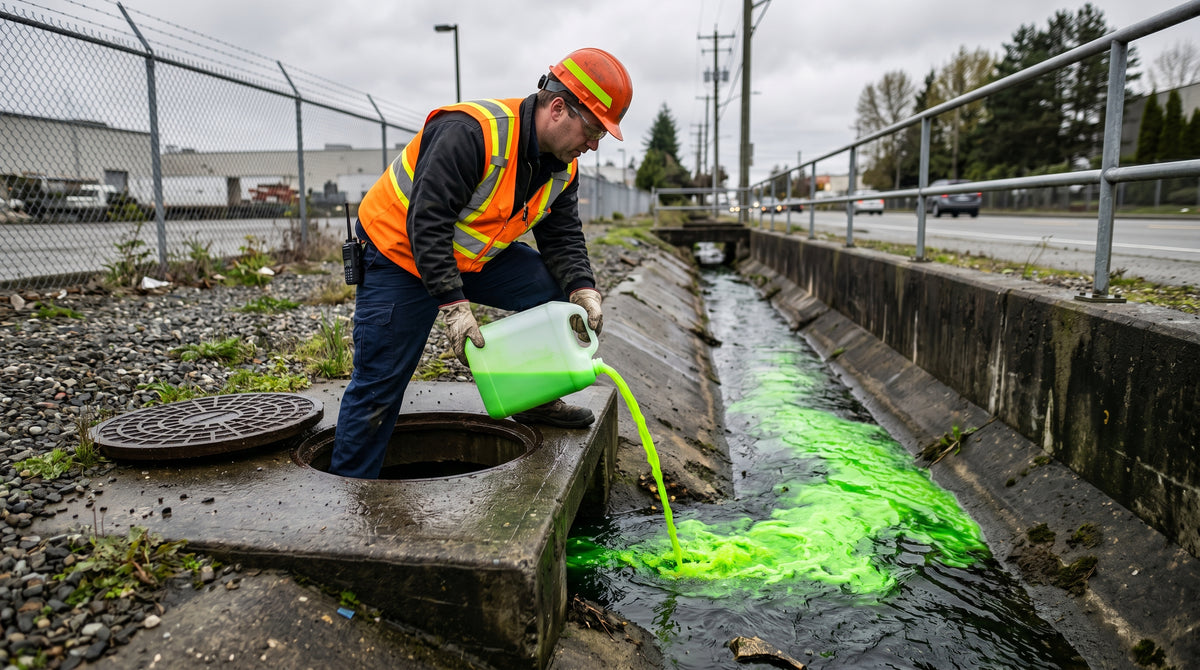

4. Introduce the dye at the source and record the time and location.
5. Observe or sample at the suspected discharge points. For low concentrations, a handheld UV black light reveals fluorescent dye down to about 10 ppb; a fluorometer extends sensitivity further for quantitative studies.

Account for sunlight resistance, sorption onto suspended matter, and environmental conditions for long traces — these affect how much dye survives to the detection point.

Are Tracer Dyes Safe and Approved for Water Systems?

Used at tracing concentrations, the major fluorescent tracer dyes are designed to be safe for the environment and for contact with water systems — but you must confirm the certification for any trace that could reach drinking water. The key credential is NSF/ANSI Standard 60, which covers drinking-water treatment chemicals; Bright Dyes tracer dyes are certified to NSF Standard 60. For discharges to the environment, follow provincial water and wastewater rules and any municipal authorization for releasing tracer dye to storm or sanitary systems, consistent with federal and provincial water-quality requirements. When in doubt on a sensitive receiving water, notify the authority before dosing.

What ERE Supplies for Dye Tracing

ERE Inc. has supplied environmental and field equipment across Canada for 30+ years, with the full Bright Dyes fluorescent tracer dye line stocked and shipped from Montreal with bilingual technical support. The range covers every color (industrial and FWT red, fluorescent yellow-green, orange, and blue) in all three formats — tablets, liquid concentrate, and powder — with NSF Standard 60 certification and published trace ratings for dose calculation.

Whether you're a municipality tracing storm/sanitary cross-connections, an environmental consultant running a flow study, or a contractor locating a sewer leak, ERE can match the color, format, and quantity to your application. Send the application, water volume, and detection method and our technical team will recommend the right dye.

Frequently Asked Questions

What dye is used for leak detection in water systems?

Fluorescent tracer dyes — most often fluorescent yellow-green or red — are used for leak detection. They're added to the suspect line in small amounts and traced to where they surface. Fluorescent grades can be detected with a UV black light at around 10 ppb, well below the visible threshold, which makes them effective for finding small or slow leaks.

How much tracer dye do I need?

Dose from the water volume and the dye's trace rating. As a benchmark, one pint of liquid industrial red dye gives strong visual detection in up to about 12,500 gallons, and one pound of powder covers up to about 120,000 gallons. For UV or fluorometric detection you can use far less. Under-dosing loses the trace and over-dosing wastes dye, so calculate before you dose.

What color tracer dye should I use?

Choose the color with the most contrast against the water you're tracing. Fluorescent yellow-green is most visible in clear water; red cuts through green, algae-laden water; orange is common for sewer tracing; and blue is used where a discreet tint is preferred. Red, orange, and yellow-green are fluorescent and can be read under UV light.

Are tracer dyes safe for drinking water systems?

At tracing concentrations, professional tracer dyes are formulated to be safe, and the relevant credential for drinking-water contact is NSF/ANSI Standard 60. Bright Dyes tracer dyes are certified to NSF Standard 60. For discharges to the environment, follow provincial water rules and obtain any required municipal authorization before dosing.
