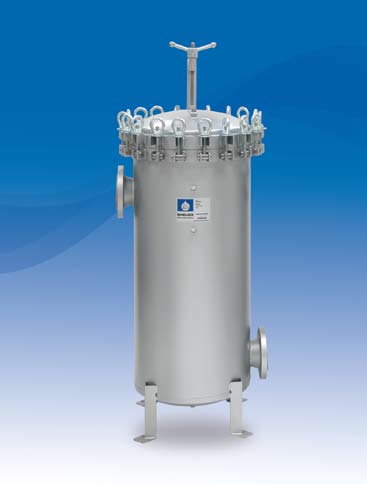

Specifications
• Heavy-duty 304L or 316L Stainless Steel construction
• 2 to 6 bags capacity accommodates a wide range of flow rates and special parameters
• Maximum operating pressure: 150 PSI (10 bar) @ 300°F (149°C)
• 2BFS clamp closure filter housing offers quick, easy service and exceptional value
• Larger, heavy-duty swing-bolt closure housings with cover lifting davit assembly are the perfect choice for high flow industrial applications
• Basket hold-down device with basket seal eliminates by-pass
Applications
• Water
• Chemicals
• Food & Beverage
• Electronics
• Oil
• Inks / Paints / Coatings
• Coolants
• Pulp & Paper
| Maximum Operating Pressure | 150 psig (10.3 bar) @ 250°F (121°C) – Clamp closure 150 psig (10.3 bar) @ 300°F (149°C) – Swing bolt closure |
| Connections | Inlet /Outlet: - 3"" RF Flanges (2BFS) - 4"" RF Flanges (3BFS, 4BFS) - 6"" RF Flanges (5BFS and 6BFS) Optional: RF Flanges or Sanitary Ferrules Drain Port: - 1/2"" FNPT (2BFS-2C) - 3/4"" FNPT (2BFS-2SB - 6BFS-2SB) Vent Port: 1/2"" FNPT Gauge Ports: 1/4"" FNPT |
| Materials of Construction | Head / Shell: 304L or 316L Stainless Steel Eye Nuts and Davit Handle: Zinc Plated Steel Mounting Legs: 304L Stainless Steel |
| Gaskets | Buna N Optional: EPR, Silicone, Teflon Encapsulated Silicone, Viton |
| Baskets | 1/8"" perforated Stainless Steel Optional: Various perforation and mesh sizes |
| Finish | Poly-coat on exterior surfaces Optional: 134 coating or electro-polish |
Related equipment we stock
Sampson™ Bag Filter Housings
2'' flange or 2.5" FNPT Inlet/Outlet | Design Pressure: 100 psi | Maximum Temperature: 45°C | No.1 size, 7" x 17" bags

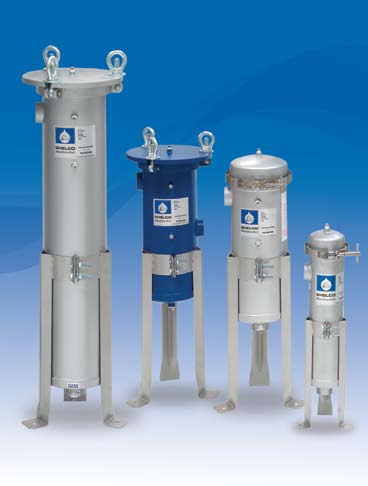

BF Series
