Features
• Designed for durable, trouble free operation
• High pressure operation for greater depths
• Multiple power input options
• Microprocessor controlled timers for accuracy
• Internal over-pressure protection
• Battery over-draw protection
• Water Level Meter compatibility for well draw-down
• Intuitive user controls and status indicator

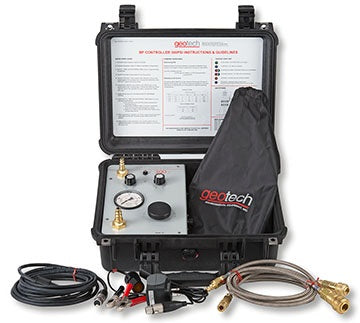

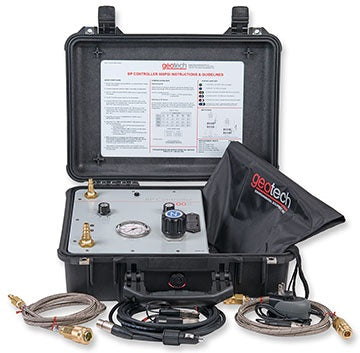

Includes
• BP Controller
• “Air-In” & “Air-Out” hoses
• Clip adapter
• AC power supply
• DC power cord
• Drawstring bag
• Carry case

Part NumberGT-BPC-300PSIGT-BPC-500PSI
Max. Operating Depth690 ft (210 m)1000 ft (304 m)
Input Air PressureUp to 300 psi (20.5 bar)100 to 500 psi (34 bar)
Fill Timer Range5 - 120 seconds5 - 180 seconds
Discharge Timer Range5 - 120 seconds5 - 180 seconds
Timer Resolution2 seconds2 seconds
Timer Accuracy±2 seconds±3 seconds
12V 8Ah Battery Life1,300 cycles @ 30 second timers50,000 cycles
Internal Battery/LifeExternal only(2x) 9V/30,000 cycles
External Battery10.5V - 13.8V DC10.5V - 13.8V DC
AC90V - 40V AC*90V - 240V AC*
Line Frequency45 Hz - 65 Hz45 Hz - 65 Hz
Maximum Power15 W15 W pulse for 50 mS
Operating Temperature0° - 70°C (32° - 158°F)0° - 70°C (32° - 158°F)
Storage Temperature-20° - 85°C (-40° - 185°F)-20° - 85°C (-40° - 185°F)
Enclosure MaterialStructural resinStructural resin
Dimensions16" L x 12" W x 7" H19" L x 14" W x 7" H
Weight15 lbs25 lbs
