Type: Single point
Material: 316 stainless steel

Operation:

1. Insert sampler into product ensuring that the sample collecting chamber is in the closed position.
2. At the correct sampling depth, turn the inner tube to expose the sample collecting chamber.

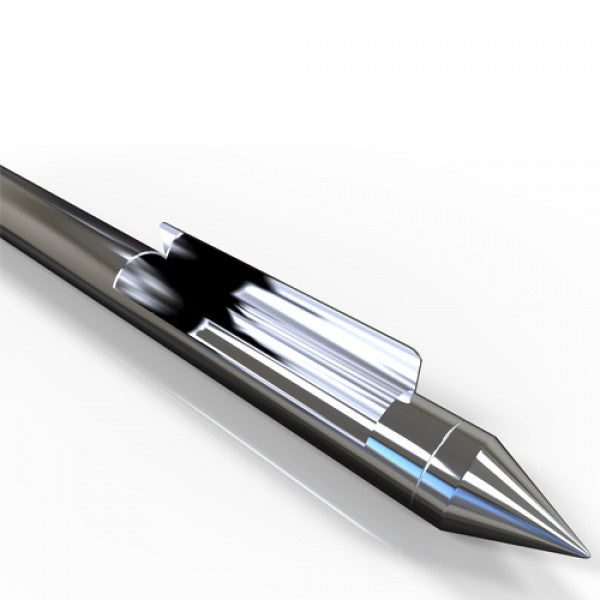

3. Rotate the entire sampler through 360º. The scraper collects product and guides it into the sample collecting chamber.
4. Turn the inner tube to close the sample collecting chamber.
5. Remove sampler.
6. Pull out the inner tube and discharge the sample.

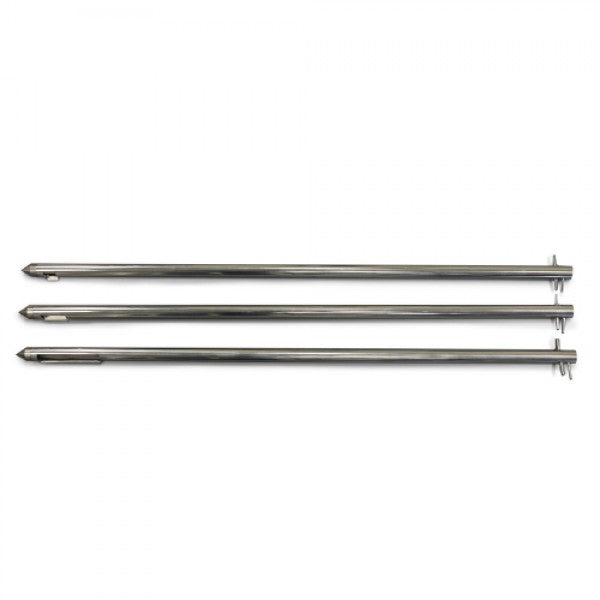

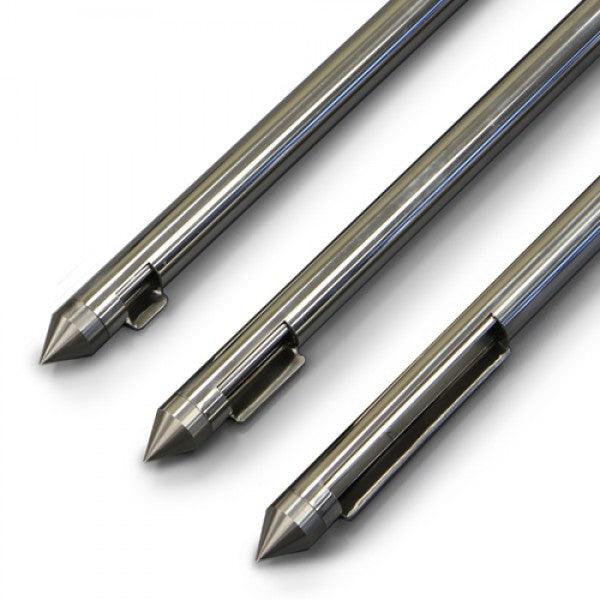

Part NumberCapacityDimensions
SS-2015A-055 ml (0.17 oz)1000 mm (39.4") Length, 25 mm (1.0") Diameter
SS-2015A-1010 ml (0.34 oz)1000 mm (39.4") Length, 25 mm (1.0") Diameter
SS-2015A-2525 ml (0.85 oz)1000 mm (39.4") Length, 25 mm (1.0") Diameter
Model Item Quantity Unit Price Line Total
5 ml - Cohesive Sampler
$ 0.00
10 ml - Cohesive Sampler
$ 0.00
25 ml - Cohesive Sampler
$ 0.00
$ 0.00
