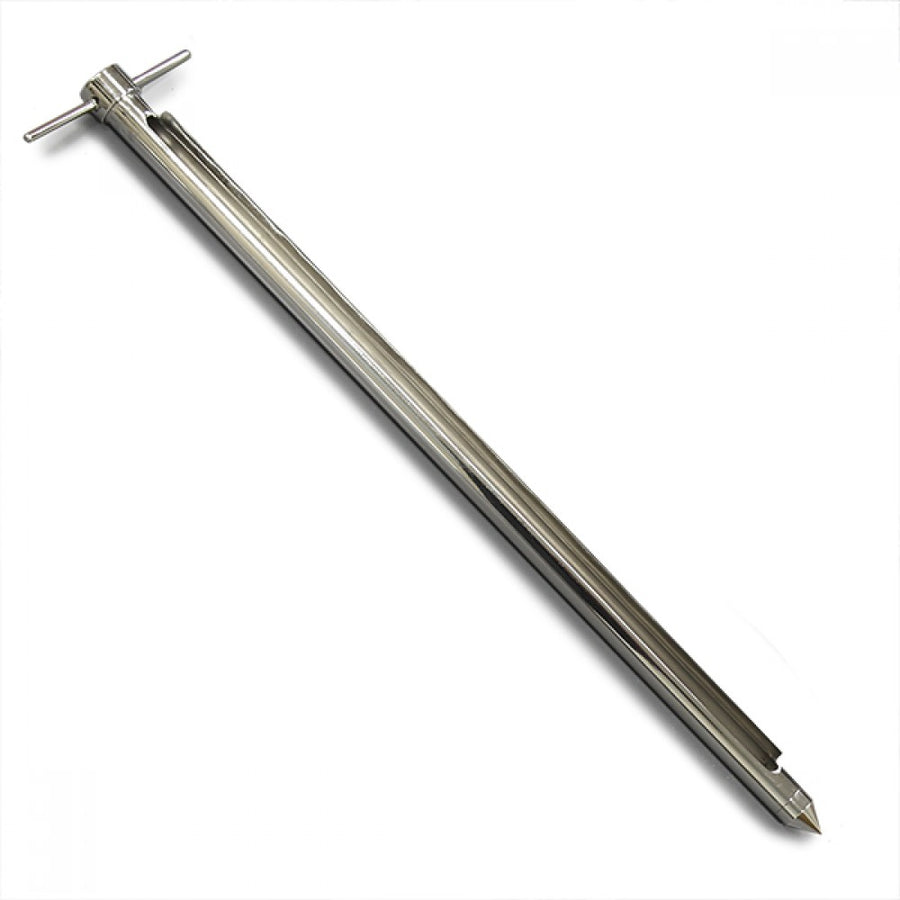

The Powder Lance can be used to take large volume samples of cohesive powders. The sampler can be used horizontally through a sack or else it can be used vertically.

Type: Cross sectional sampler
Material: 316 stainless steel

Operation:

1. Insert the sampler into the product.
2. Rotate the sampler through 360°. The Scraper forces the powder in to the sampler along the length of the slot.
3. Remove the sampler.
4. Unscrew the tip of the sampler.
5. Push the Sample Ejection Rod into the Powder Lance to push out the sample.

Part NumberModelDimensionsMax. Sample Volume
SS-2250A-600Powder Lance600mm (23.6") Overall Sampler Length
500 mm (19.7") Length of Sampling Slot
110 ml (3.7 oz)
SS-2250A-1000Powder Lance1000 mm (39.4") Overall Sampler Length
900 mm (35.4") Length of Sampling Slot
190 ml (6.4 oz)
SS-2250A-1200Powder Lance2000 mm (78.7") Overall Sampler Length
1600 mm (63") Length of Sampling Slot
360 ml (12.2 oz)
SS-8570A-700Sample Ejection Rod 700 mm (27.6") Length-
SS-8570A-1100Sample Ejection Rod 1100 mm (43.3") Length-
SS-8020A-1100Standard Cleaning Brush   Max. Tube Diameter: 30 mm (1")
Min. Tube Diameter: 15 mm (0.6")
Length: 1100 mm (43")
-
SS-8505A-01Standard Sampler Case1210 mm (47") L x 225 mm (9") W x 96 mm (4") H-
