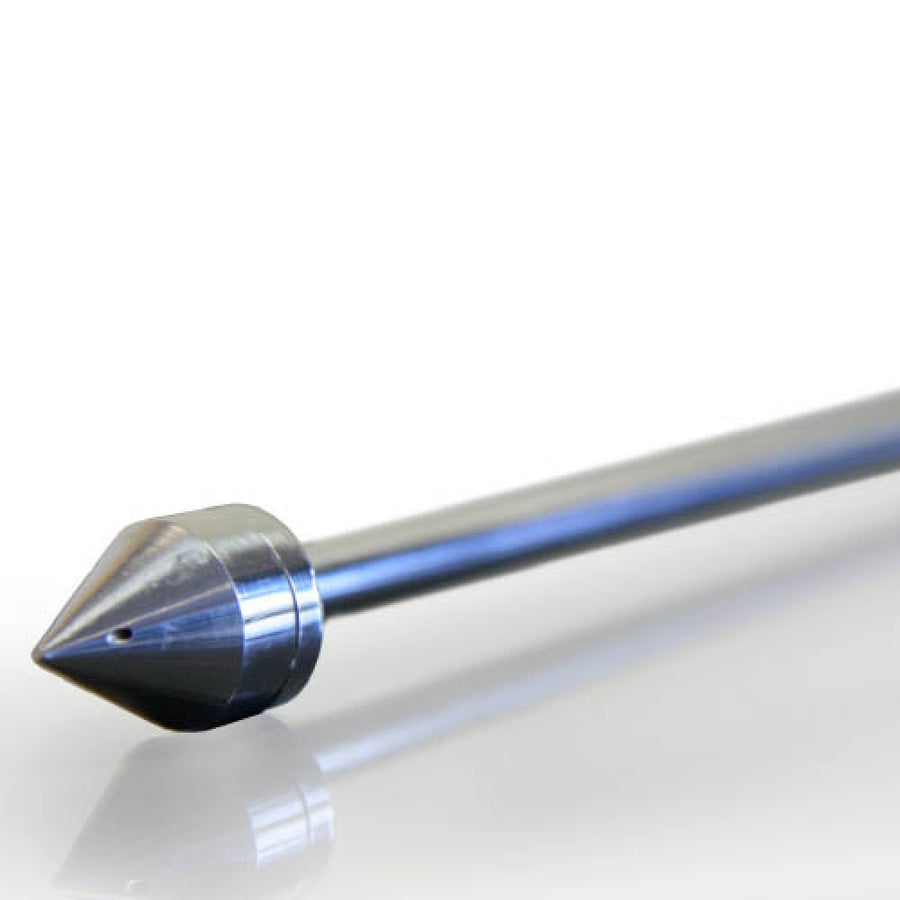

Different sample volumes can be taken by changing the tip. Standard sample tips available from stock are 0.25, 0.5, 0.75 and 1ml. Special tip volumes and sampler lengths available on request.

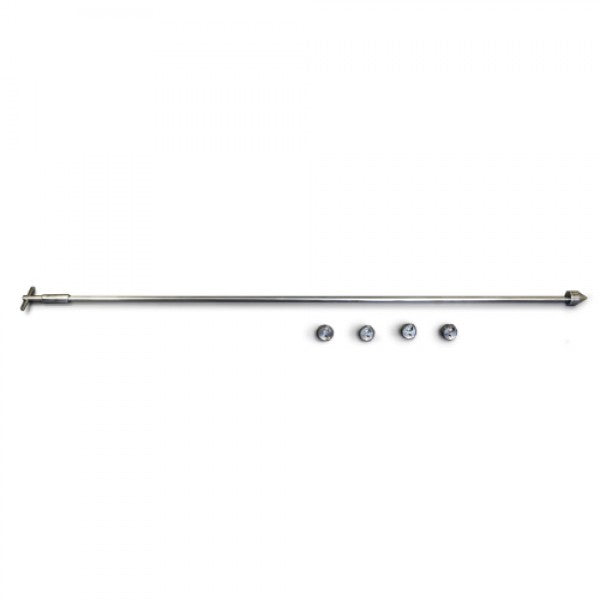

U-D Cohesive Sampler Set consists of: 1 off Handle, Sample Cells - 1 each of : 0.25ml, 0.5ml, 0.75ml, 1.0ml and 1 off Standard Sampler Case.

Operation
1. Insert the sampler into the product
2. At the required depth push down the handle and rotate it through 180°
3. Pull up sampler slightly (to fill the cell), then rotate handle 180° (to lock cell in closed position)
4. Remove sampler

*Note - cleaning brush and transport case also available

Part NumberModelVolumeMaterial
SS-2000S-01U-D Cohesive Sampler Set 0.25, 0.5, 0.75, 1.0 ml316L stainless steel

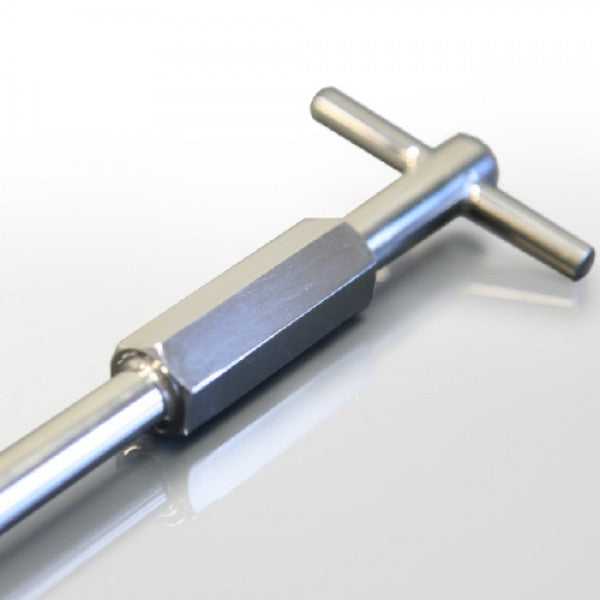

SS-2000A-1000Sampler Handle-316L stainless steel
SS-2000T-025Sample Collecting Cell0.25ml316L stainless steel
SS-2000T-050Sample Collecting Cell0.5ml316L stainless steel
SS-2000T-075Sample Collecting Cell0.75ml316L stainless steel
SS-2000T-100Sample Collecting Cell1ml316L stainless steel
