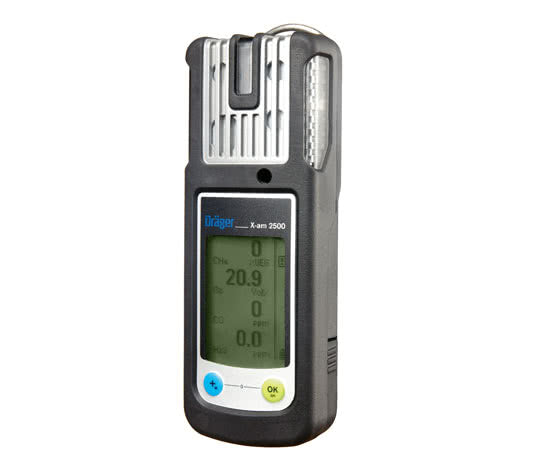

Dräger’s X-am 2500® accurately detects O2, CO, NO2, SO2 and H2S and
is the only 1-4 gas monitor you need for a wide range of applications. The
X-am® 2500 combines reliable sensor technology with long battery life and
intuitive operation in an instrument that defines safety.
The X-am 2500 has a large, easy to read, liquid-crystal display. All gas
readings are shown simultaneously and resize automatically depending on
the number of sensors installed. When a gas alarm occurs, the reading for
the sensor in alarm will be highlighted and will alternate with the alarm level
indication of A1 or A2.
High Capacity Battery
The Dräger X-am 2500 can operate for more than 12 hours with either alkaline batteries or with rechargeable NiMH batteries. Depending on the requirements,
the batteries can be charged either in the workshop or in a vehicle. Operating time without an Ex sensor installed is typically more than 250 hours.
The X-am 2500 is compatible with Dräger’s X-dock testing and calibration station. X-dock is Dräger’s new solution for efficient maintenance and comprehensive
equipment management. Used for functional testing and complete documentation, X-dock can complete bump tests in 8 to 15 seconds with more than 40%
less gas consumption than competitive instruments1. The X-am 2500 is also compatible with the Dräger Bump Test Station.
Long-Lasting, Reliable Sensor Technology
The innovative, catalytic Ex sensor has a high degree of drift stability with a high resistance to silicone and hydrogen sulfide. The sensor boasts an expected
service life of more than five years and is extremely sensitive to flammable gases and vapors. Further, the X-am 2500 is approved for measuring from
methane to nonane, according to IEC/EN 60079-29-1.
Zone 0 Approved
The Dräger X-am 2500 has Ex approval for zone 0 for user safety in areas subject to explosion hazard. Additionally, it is not sensitive to electromagnetic
radiation, e.g. from wireless devices and is water and dust resistant in accordance with protection class IP 67.
Diffusion or pump
An optional external pump with a hose up to 45 m / 147 ft long is available for use in tanks and shafts or when searching for leaks. The switch from diffusion
to pump operation can be handled quickly and easily without tools or screws.
Ergonomic and robust
The Dräger X-am 2500 is comfortably worn thanks to its low weight and ergonomic design and gas can enter the unit from above and from the front—even if
the instrument is inside a pocket or if the front gas entry is accidentally covered.
The practical two button control panel and easy menu navigation allow for intuitive operation while the integrated protective rubber coating and sensors not
sensitive to shock provide additional safety in case of impacts or vibrations.
Peak value functionality
The X-am 2500 can store the highest gas readings for the Ex and toxic gas sensors and the lowest reading for the O2 sensor. These readings can be easily
reset after a gas exposure without having to turn the monitor off and on.
1 X-dock bump test stated times are typical results; stated gas consumption is based upon calibration gas flow of 0.3 L /minute versus 0.5 L/minute without
using X-dock for bump test
