Stand Alone Station

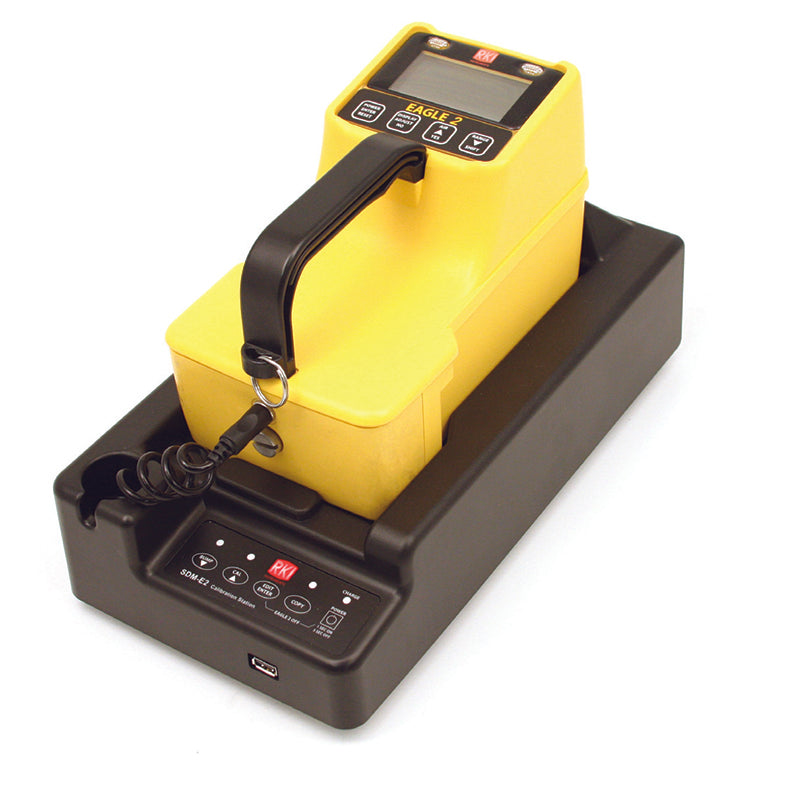

The SDM-E2 is a versatile maintenance tool for the Eagle 2 portable gas
monitor. This docking station can be used as a stand-alone device for
charging, calibration and bump testing, with all records automatically stored
for future upload to a PC via USB flash drive (PC software and flash drive

Modular Design
The SDM-E2 can also be connected to a PC for automated calibration bump
testing and archiving of datalog data from Eagle 2 instruments. Up to ten
SDM-E2 docking stations can be connected simultaneously using USB
cables. The SDM-E2 is also equipped with two gas ports to connect up to two
calibration gas mixtures to each dock.

Stand Alone Station
• Stand-alone station (no connection to PC Required)
• Charging (NiMH batteries)
• Calibration
• Bump Test
• Save bump test and calibration records
• Bump test and calibration records copy to USB jump drive
• 2 Calibration gas ports
• Includes PC software for viewing/archiving bump test and calibration records

Multi Module System
• Multiple modules connected to a PC (10 max)
• Charging
• Calibration
• Bump Test
• Configure Eagle 2 parameters
• 2 Calibration gas ports
• Archive Bump Test and Calibration records
• Archive data to network location
• Software controlled data retrieval
• Automatic calibration/bump test option
• Windows 7 compatible
Model Item Quantity Unit Price Line Total
$ 0.00
$ 0.00
